Bobine

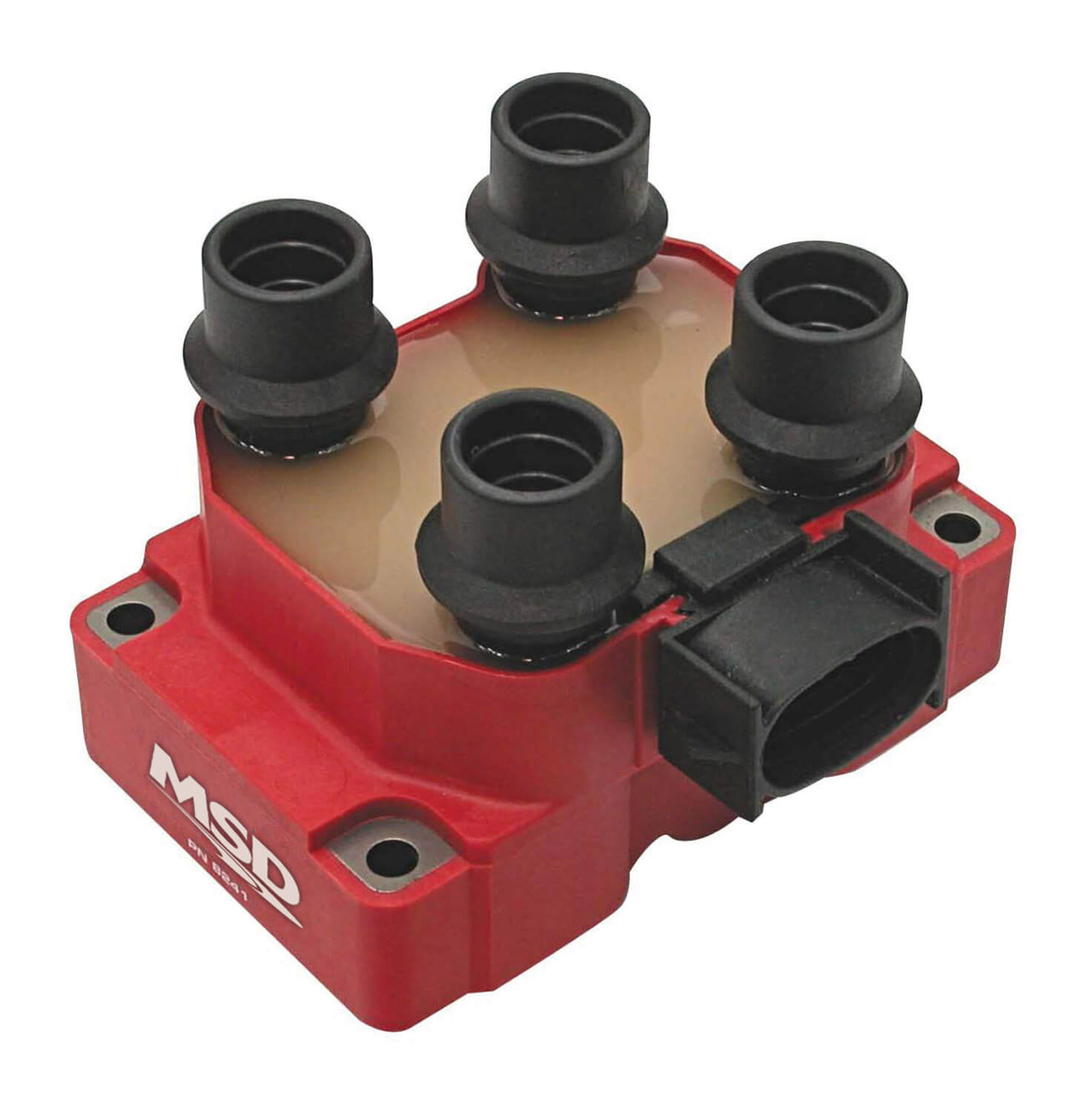

MSD Ignition : 8241
Artikelnr: MSD8241
* Designed to use w/late model Ford waste spark ignition systems * 83:1 turns ratio * Lower Primary Resistance Produces High Voltage Output * Secondary towers designed for snap on spark plug terminals * Primary terminals require Ford style connector * CARB E.O. Approved
Ford DIS Coil Pack; 4-Tower; Bolt-On; 3.9 mH Inductance; 40000 Max Voltage; 0.53 ohms Primary/13.7k ohms Secondary Resistance; 83:1 Turns Ratio; Red;
- Inductance: 3.9 mH
- Maximum Voltage: 40000
- Peak Current: N/A
- Primary Resistance: .530 ohms
- Secondary Resistance: 13.7K ohms
- Spark duration: N/A
- Turns Ratio: 83:1
