Brandstofpomp
Holley : 12-920
Artikelnr: HOL12-920

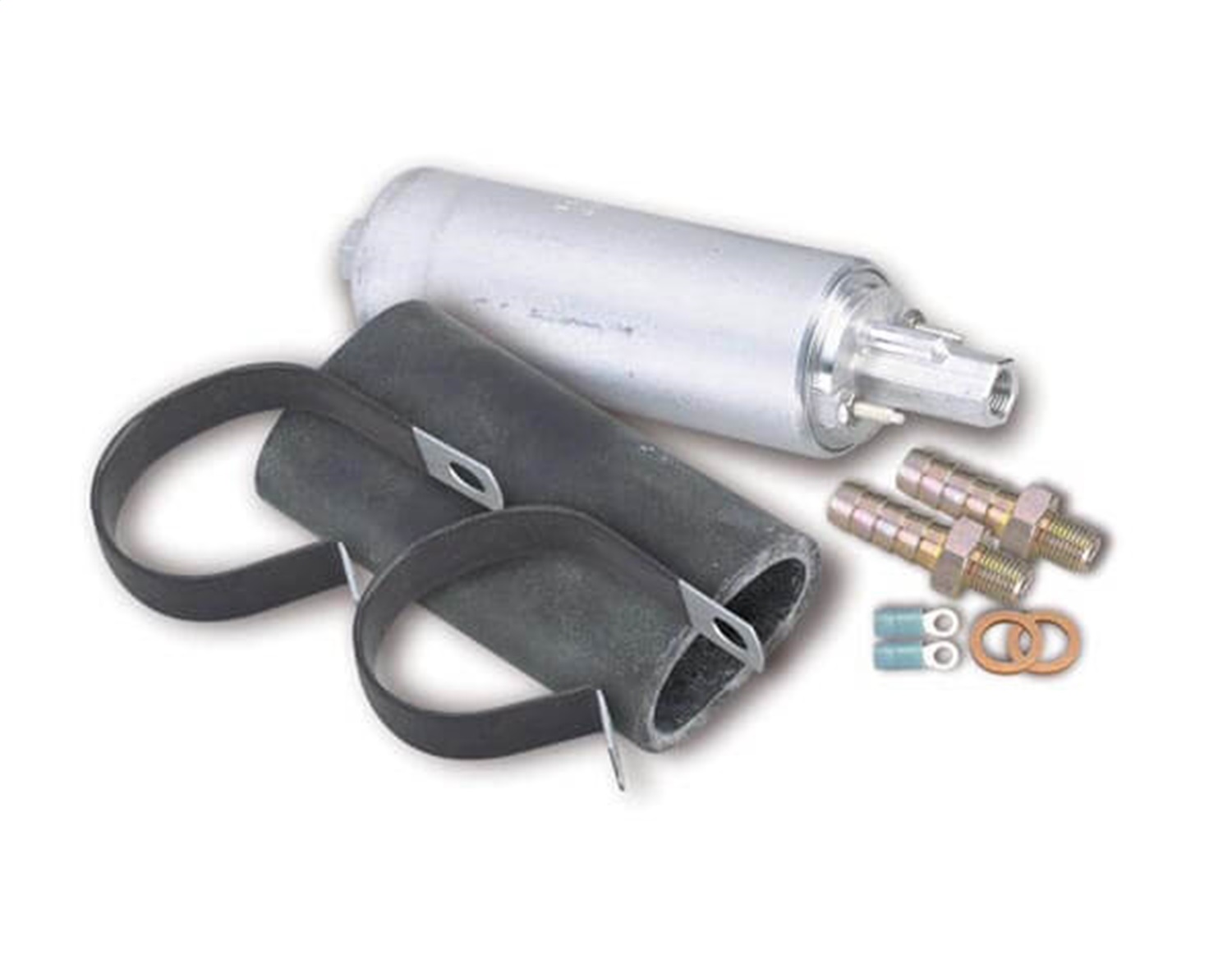

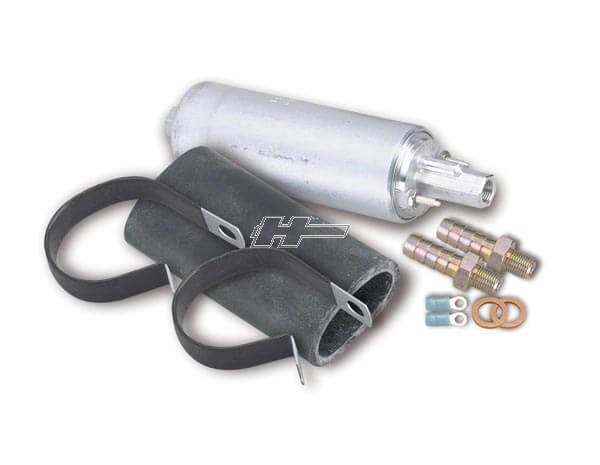

In-Line Universal Electric Fuel Pump; Free Flow Gph 80; Free Flow Lph 303; Gasoline; 3/8 In. Barb Inlet/outlet Size; Efi; Silver Steel Body/black Bracket;
* Draws 5 Amps At 15 PSI
* Will Feed Up To 800 Horsepower Throttle Body EFI Units
* Will Feed Up To 700 Horsepower Multipoint Units
* Will Feed Up To 600 Hp Forced Induction Multipoint Units
* Lightweight and Compact
* 3/8 in. Barbed Fittings Include
- Body Color: Silver
- Bracket Color: Black
- Forced Induction HP@43PSI: 600
- Free Flow GPH: 80
- Fuel System Type: Carbureted
- Fuel System Type: EFI
- Fuel Type: Gasoline

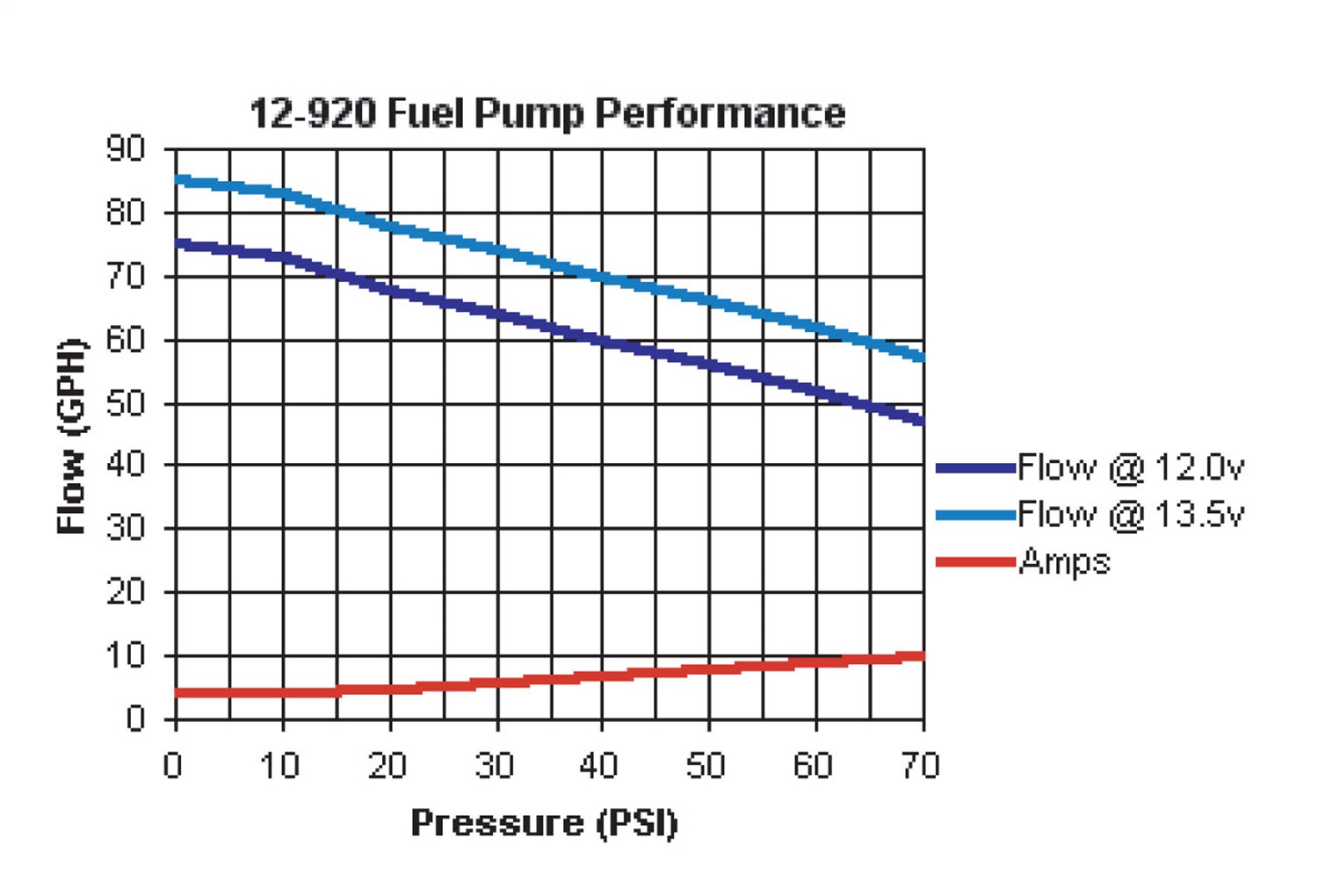

- GPH@15PSI: 80
- GPH@43PSI: 67
- GPH@60PSI: 62
- GPH@8PSI: 85
- Housing Color: Silver
- Inlet Size: 10mm x 1.000 in.
- LPH@15PSI: 302
- LPH@43PSI: 235
- LPH@60PSI: 254
- LPH@8PSI: 322
- Material: Steel
- Naturally Aspirated HP@15PSI: 800
- Naturally Aspirated HP@43PSI: 700
- Naturally Aspirated HP@8PSI: 850
- Outlet size: 10mm x 1.000 in.
- Volt: 12
- Fuel: Bensin
- Flow liters per hour: 302 LPH
- Flow gallons per hour: 80 GPH
- Fuel pressure: 60 PSI Max
