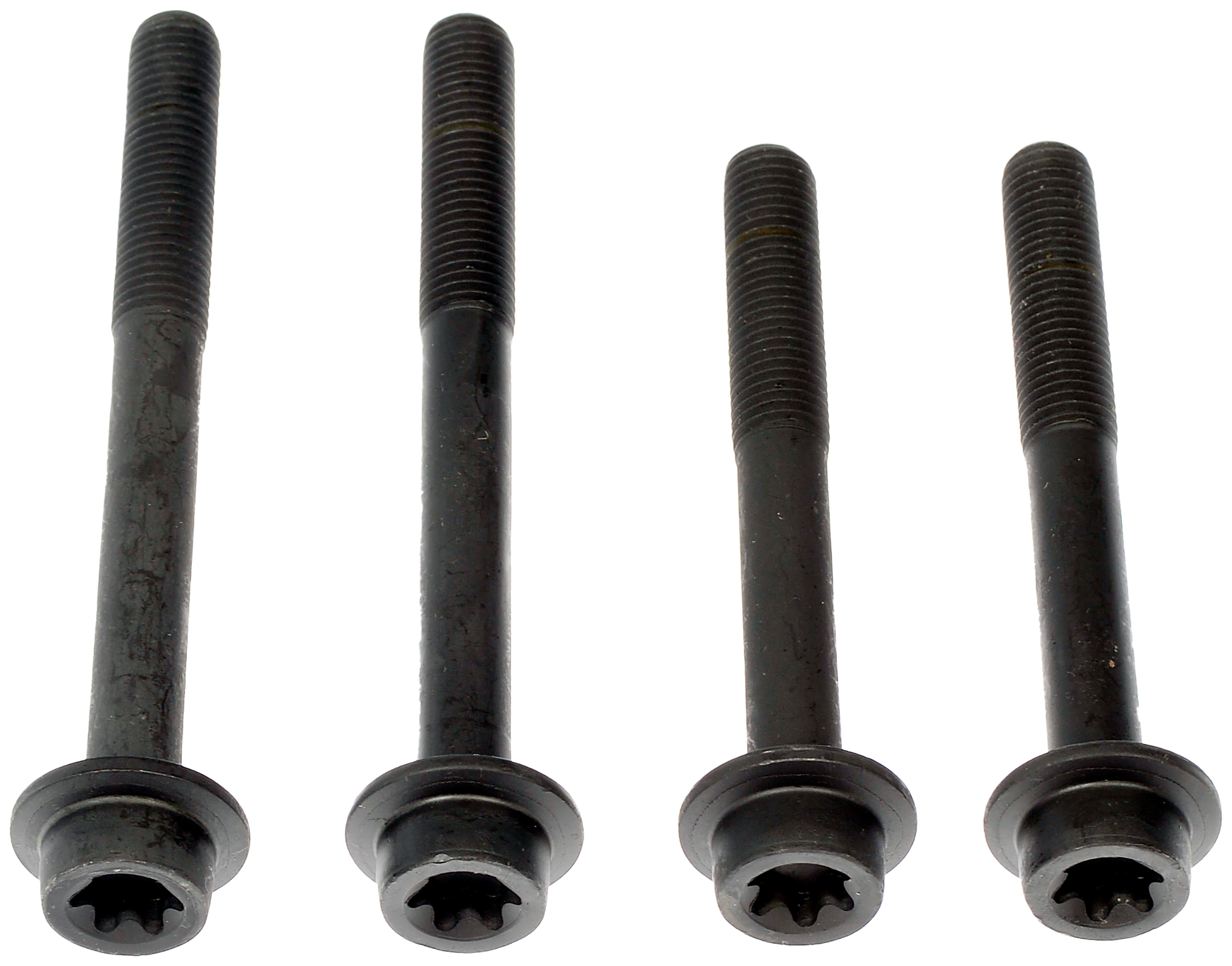

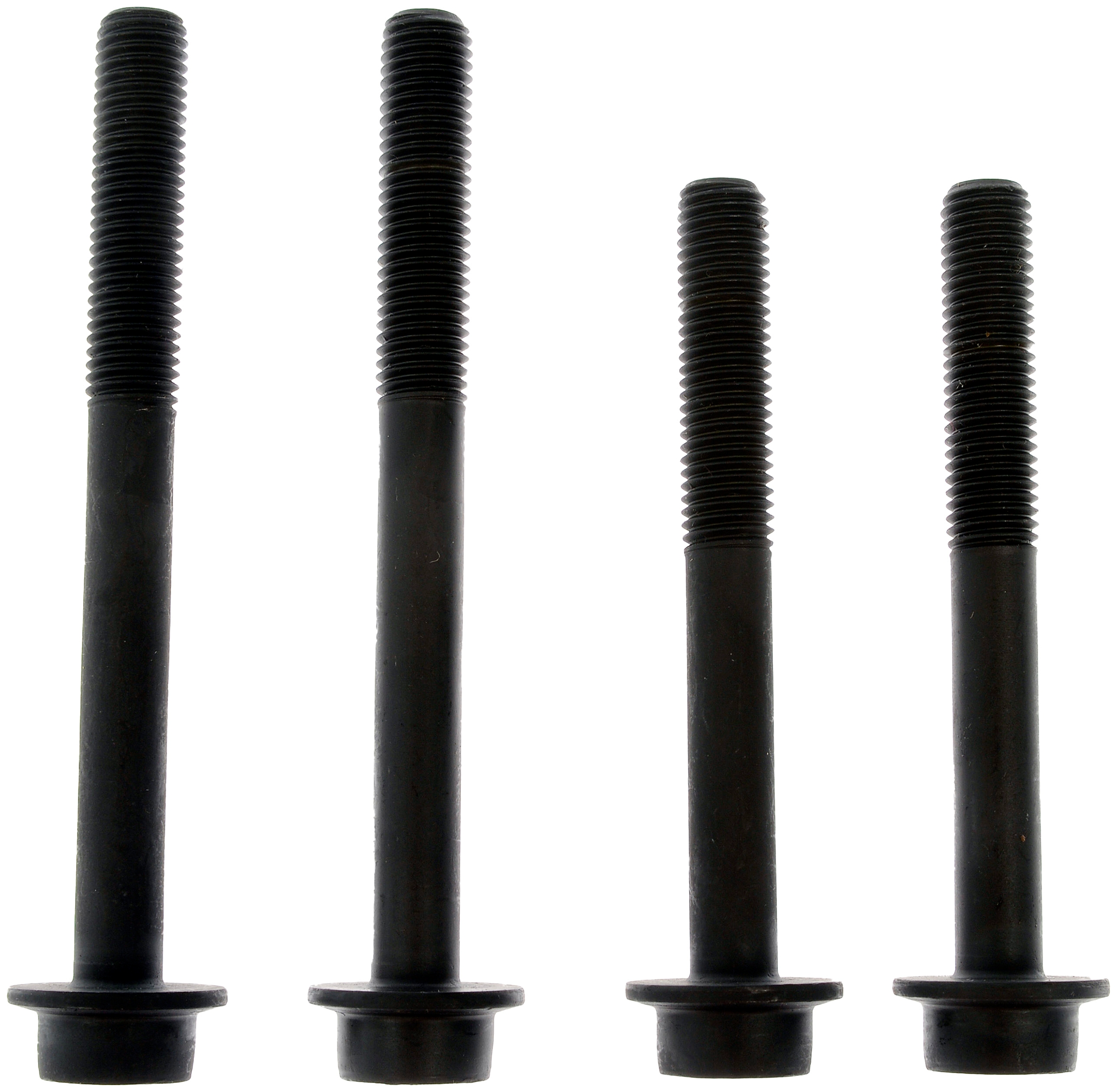

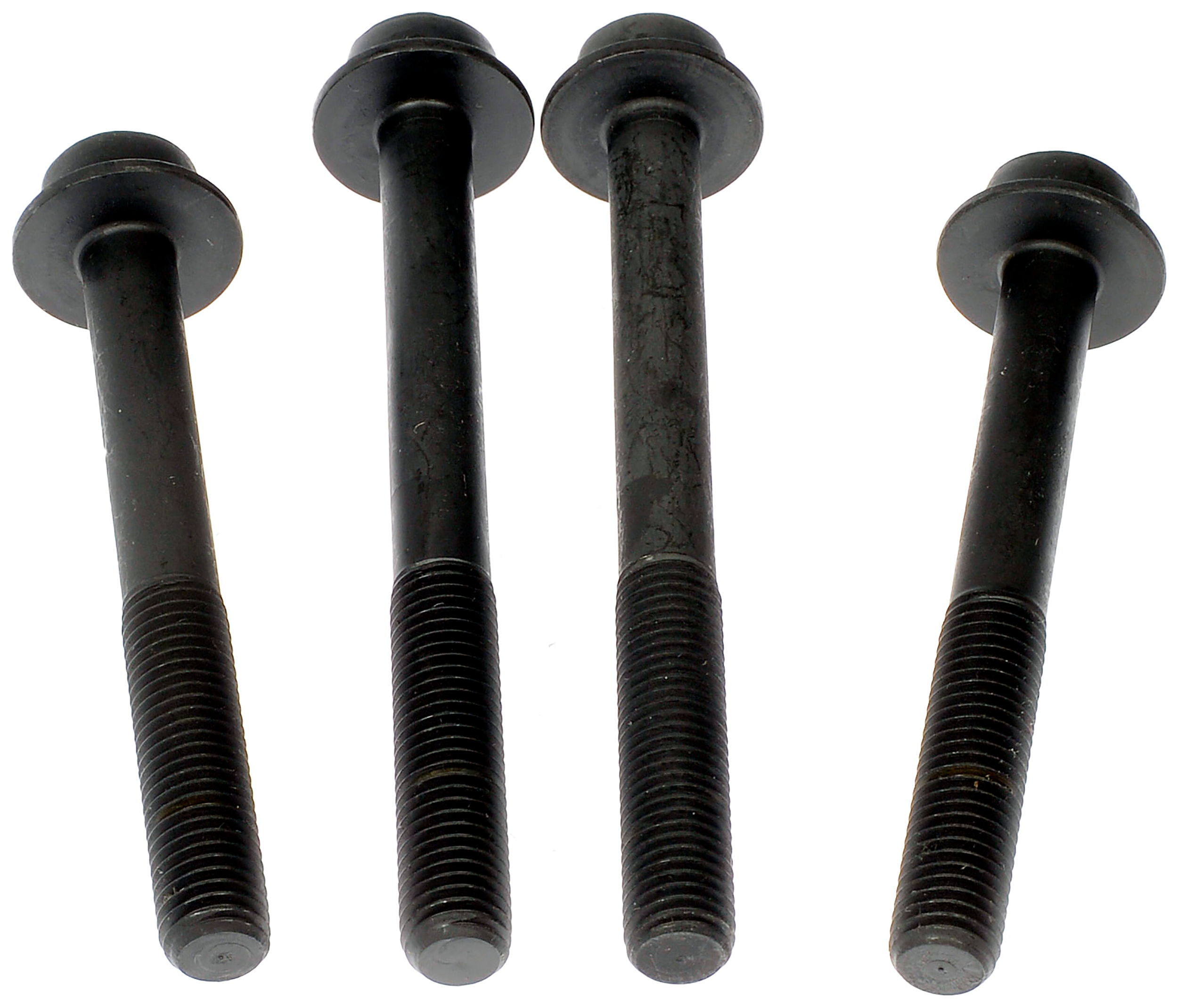

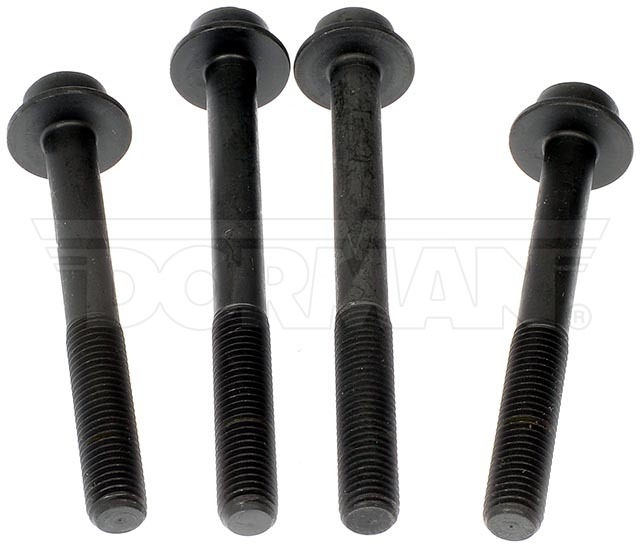

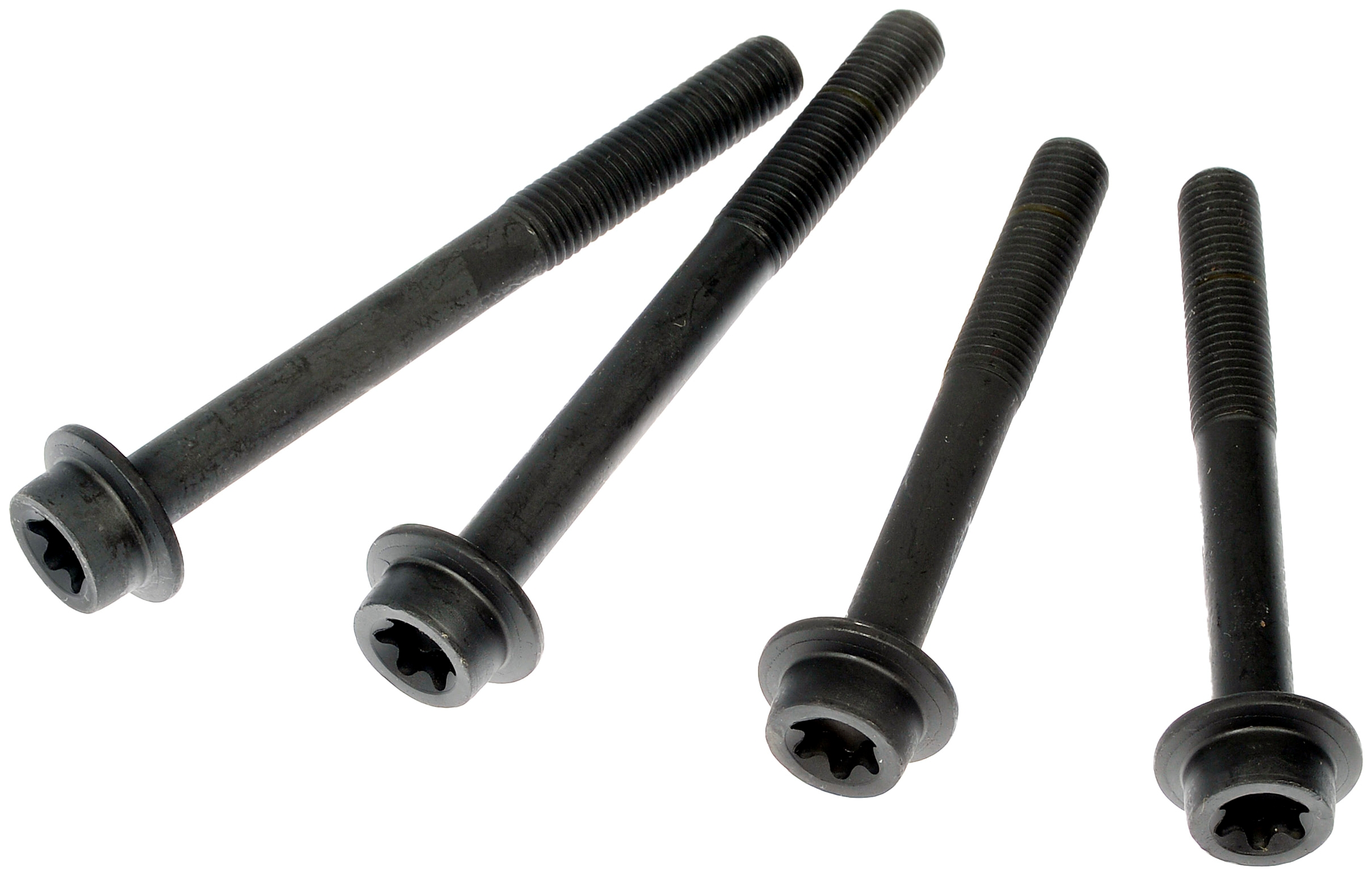

Camshaft phaser bolts
Dorman Help! : 74115
Artikelnr: DOR74115
- ACQ Rated: No
- ACQ Rated: Non
- Altura de cabeza de los pernos: 10,3 mm MM
- Bolt Grade: 10.9
- Bolt Head Height: 10.3 mm MM
- Contenidos del paquete: 2 pernos de 111,6 mm
- Contenidos del paquete: 2 pernos de 91,5 mm
- FQA Compliant: No
- FQA Compliant: Non
- Grade Type: Heavy Duty
- Grade Type: Para uso pesado
- Head Diameter: 24.5 MM
- Head Drive Type: Estrella
- Head Drive Type: Star
- Head Shape: Bugle
- Head Tool Size: 11.23 mm MM
- Head Type: Star
- Length: 111,61 mm MM
- Length: 111.61 mm MM
- Length: 91,5 mm MM
- Length: 91.5 mm MM
- Material: Acero
- Material: Steel
- Overall Length: 102.21 mm MM
- Overall Length: 122.1 mm MM
- Package Contents: 2 111.6 mm Bolts
- Package Contents: 2 91.5 mm Bolts
- Partially Threaded: No
- Partially Threaded: Non
- SAE or Metric: Metric
- SAE or Metric: Metrico
- Self Drilling: No
- Self Drilling: Non
- Self Tapping: No
- Self Tapping: Non
- Shank Diameter: 9.89 MM
- Shank Length: 48.54 MM
- Shank Length: 65.69 MM
- Specialty: No
- Specialty: Non
- Thread Diameter: 10.7 MM
- Thread Direction: Clockwise (Right)
- Thread Direction: Rotar en el sentido de las agujas del reloj (derecha)
- Thread Length: 41.37 MM
- Thread Length: 45.37 MM
- Thread Pitch: 1.5 MM
- Thread Size: M11 x 1,5 MM
- Thread Size: M11x1.5 MM
- Thread Type: Coarse
- Thread Type: Grueso
- Tipo de cabezal: Estrella
- Torque To Yield: Oui
- Torque To Yield: Yes
- Torsión angular y estiramiento: Si
- Type: Brida
- Type: Flange
- Under Head Length: 111.61 MM
- Under Head Length: 91.5 MM
- Universal Or Specific Fit: Especifico
- Universal Or Specific Fit: Specific
- AT4Z6279D: Ford
- AT4Z6279D: Ford OEM
- AT4Z6279E: Ford
- AT4Z6279E: Ford OEM
- VCB116:
- VCB117: Cloyes
- VCTB1005: Melling
- VCTB1006: Melling
