Carburator Performer

Beschrijving

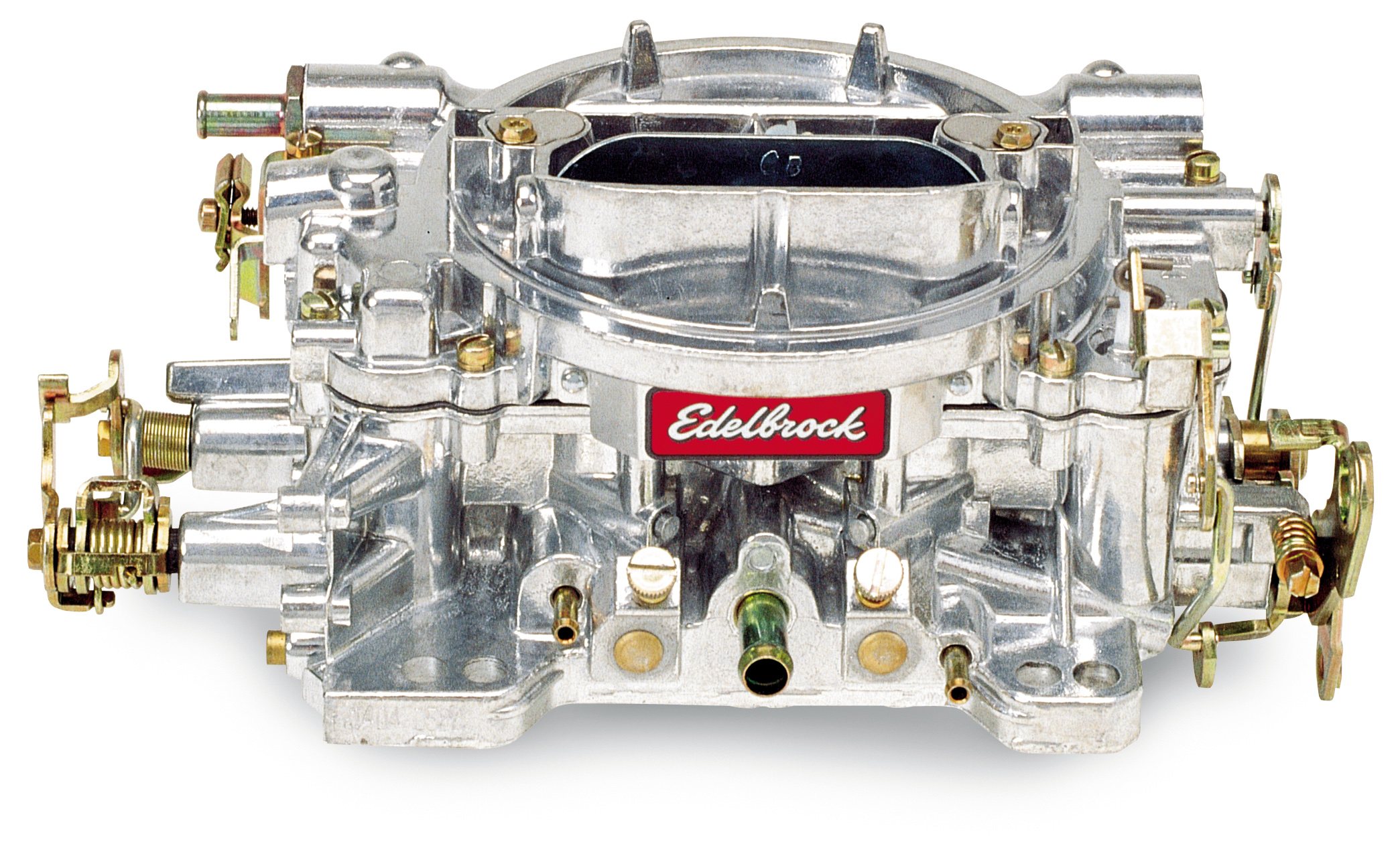

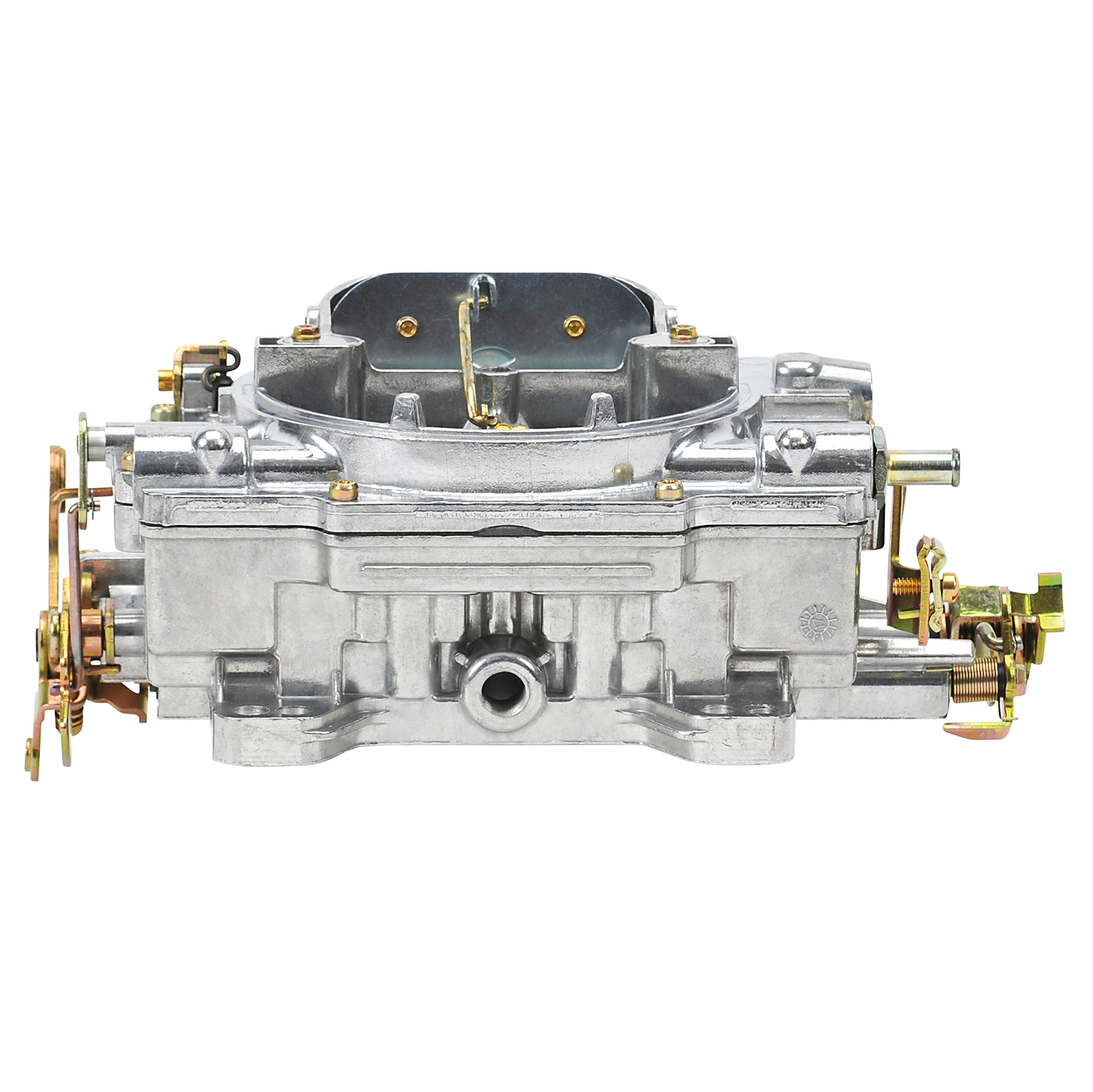

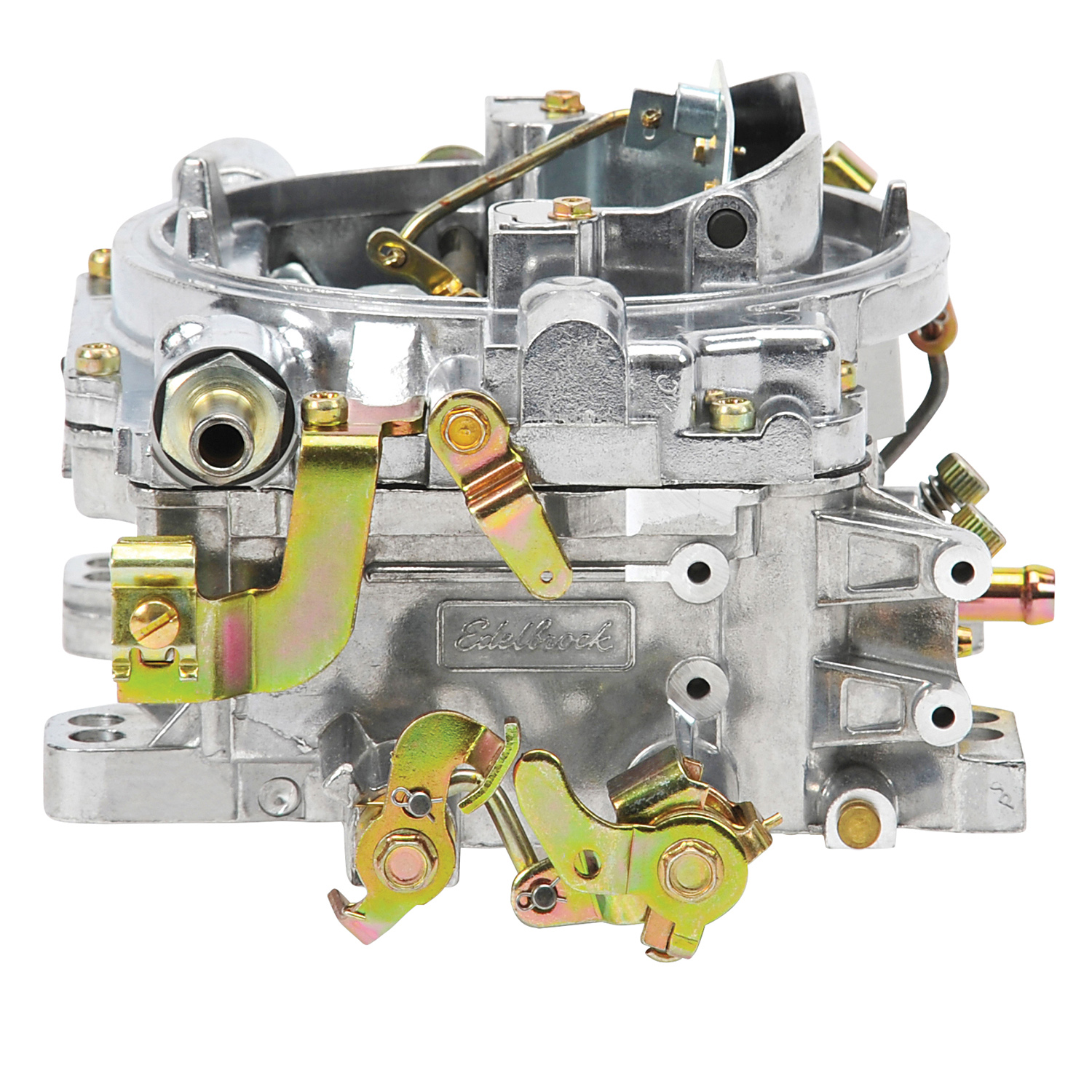

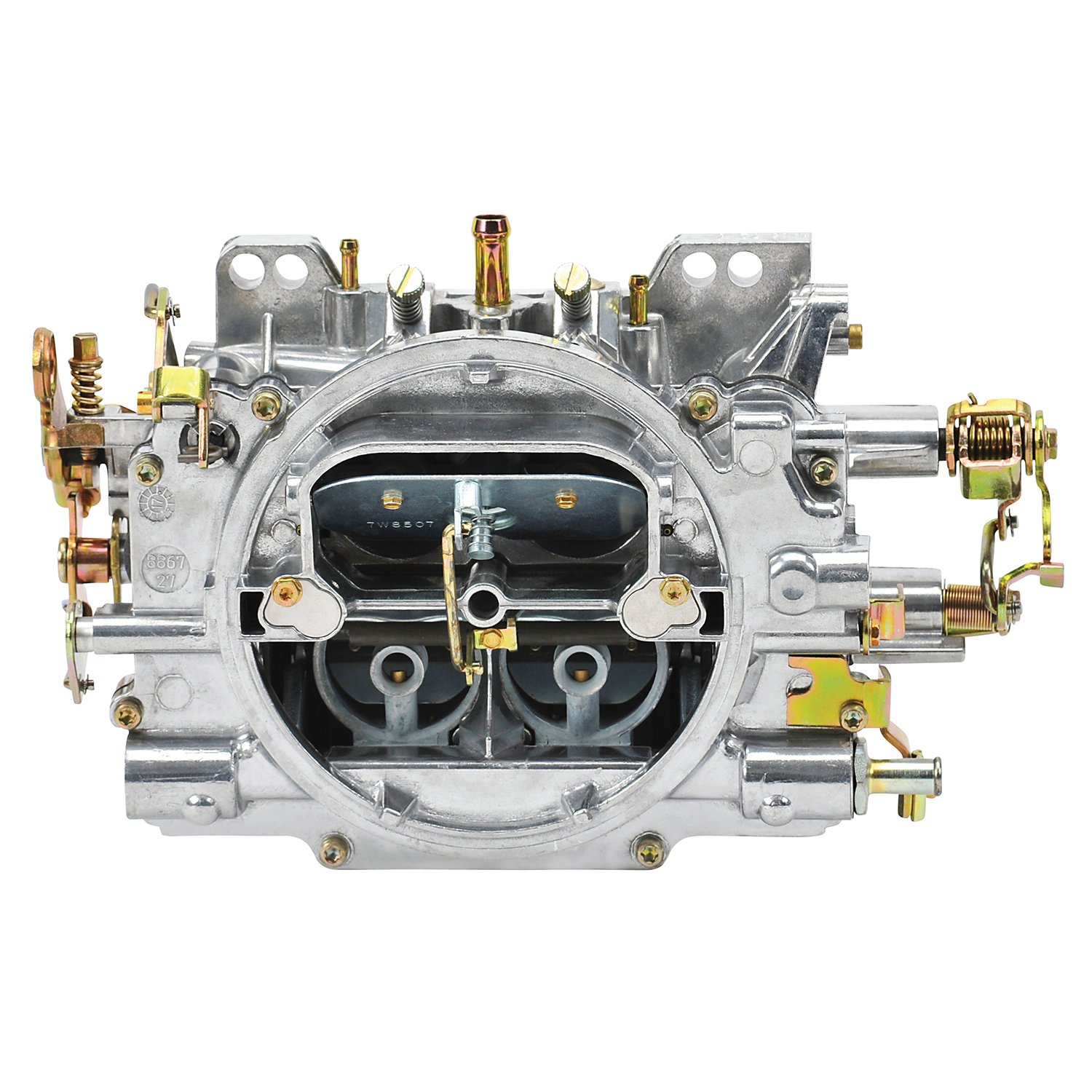

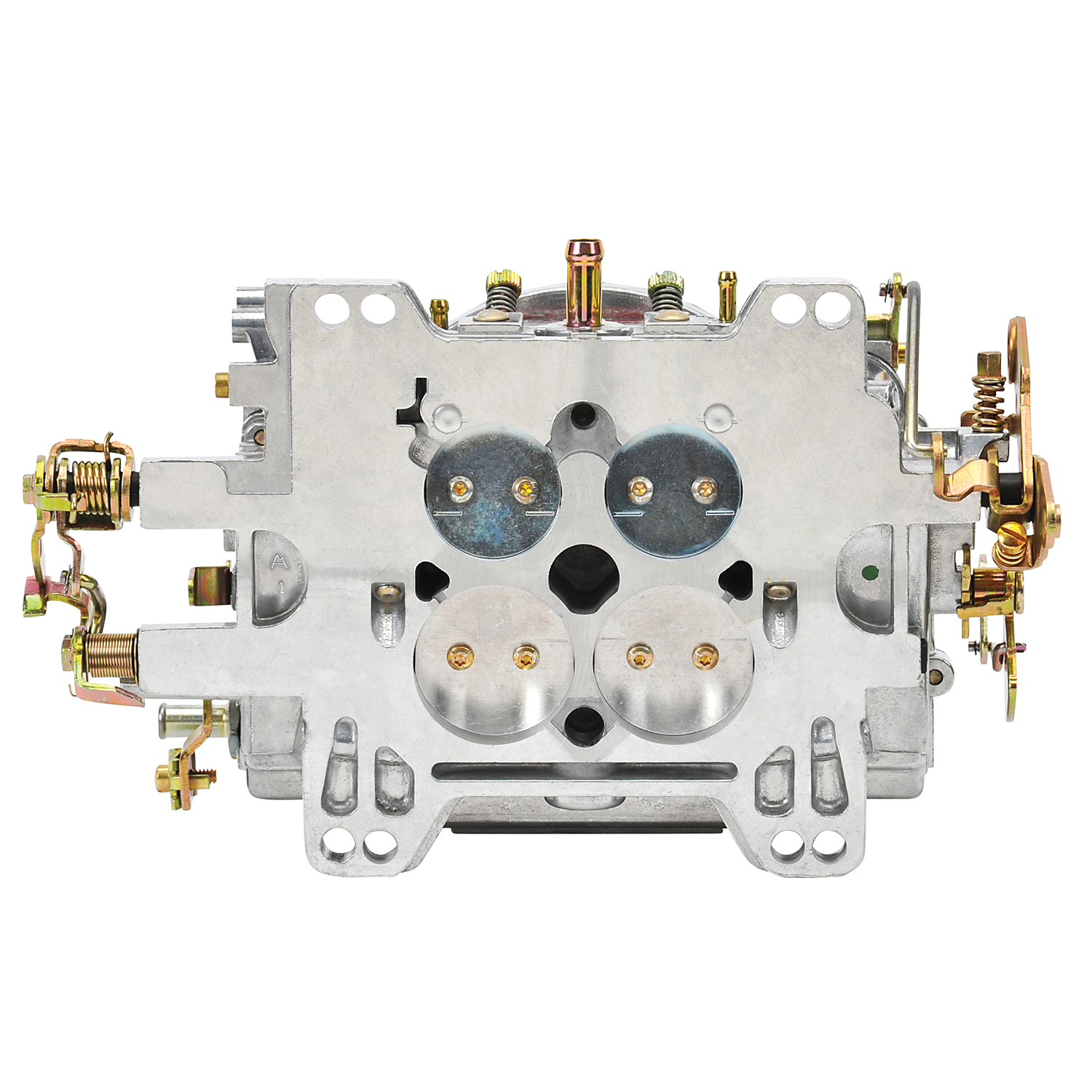

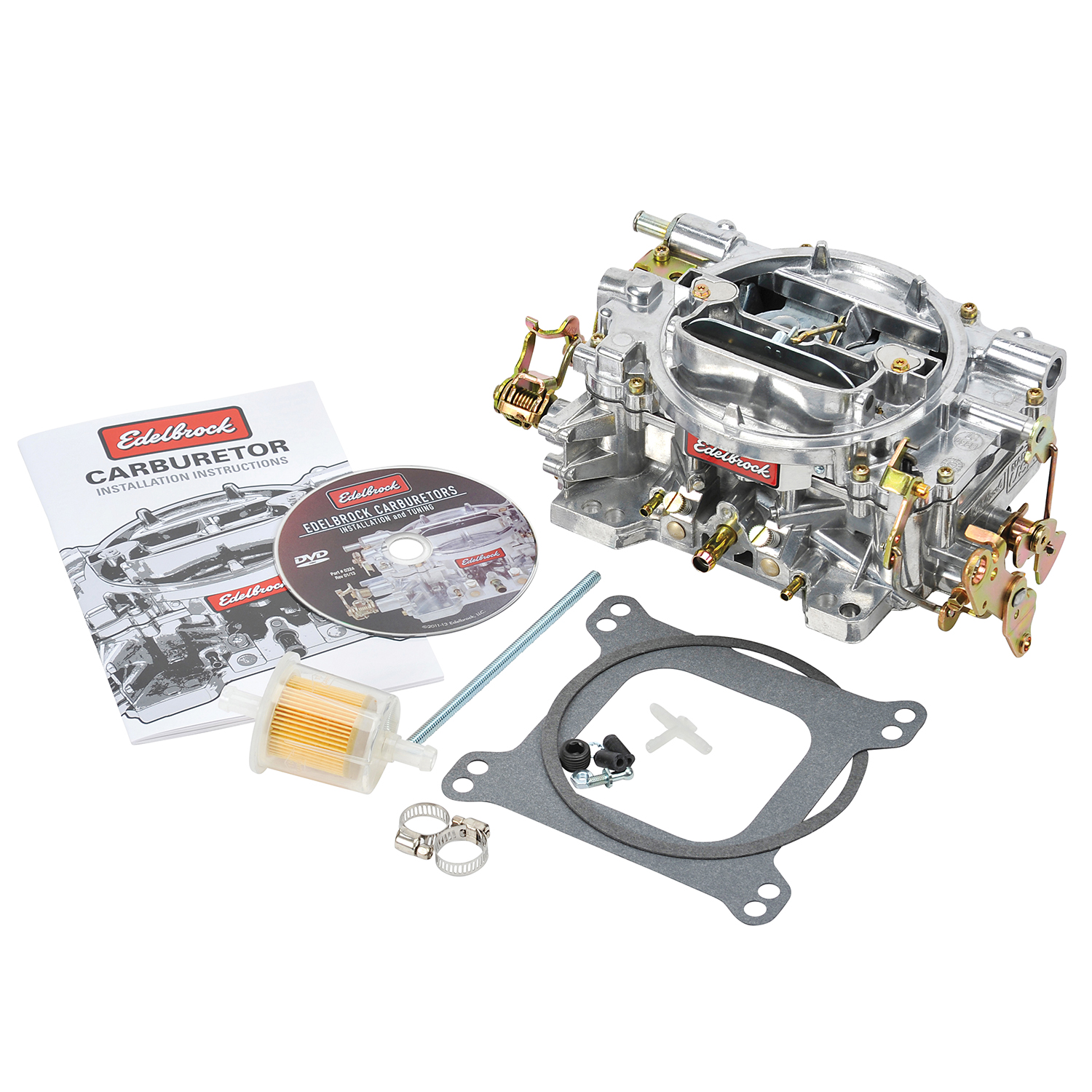

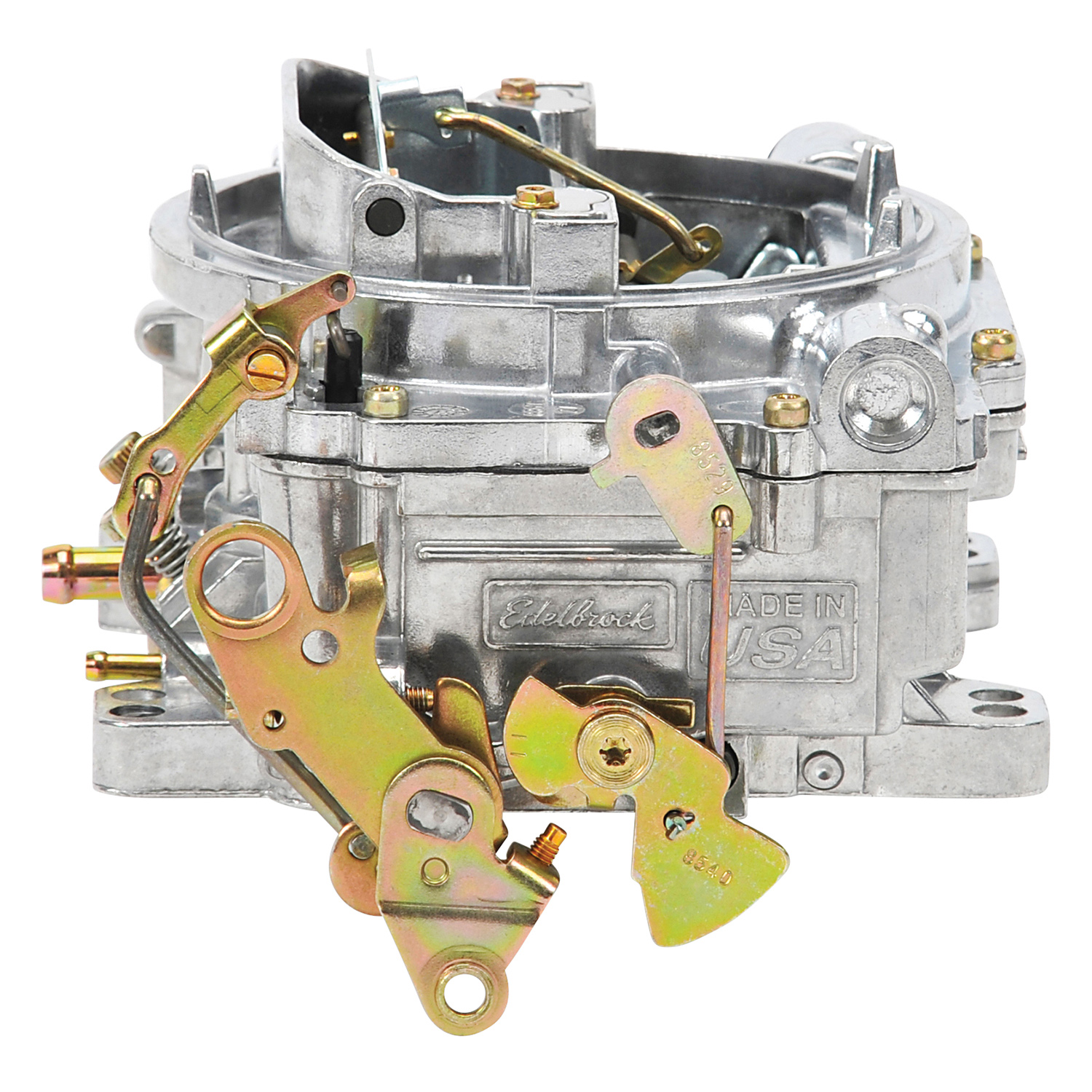

Edelbrock Performer Series 500 cfm, Square-Flange, Manual Choke Carburetor (non-EGR)

Productinformatie van de leverancier

Barrel Quantity: 4 Barrel
Body Height: 3.25 IN
Booster Type: annular
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.69 IN
Choke Type: Manual
Condition: New
EGR Port: No
Finish: Satin
Flange Shape: Square
Gasket or Seal Included: Yes
Main Venturi Diameter: 1.19 IN
Material: Aluminum
Maximum Flow Rating: 500 2L
Metering Rod Size: .065 x .047 IN
Primary Jet Diameter: 0.086 IN
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Jet Diameter: 0.095 IN
Series: Performer
Spring Force: 5" Hg (Orange)
