Kruiskoppeling
Precision : HMG534G
Artikelnr: PRC534G
92x28,6mm in-

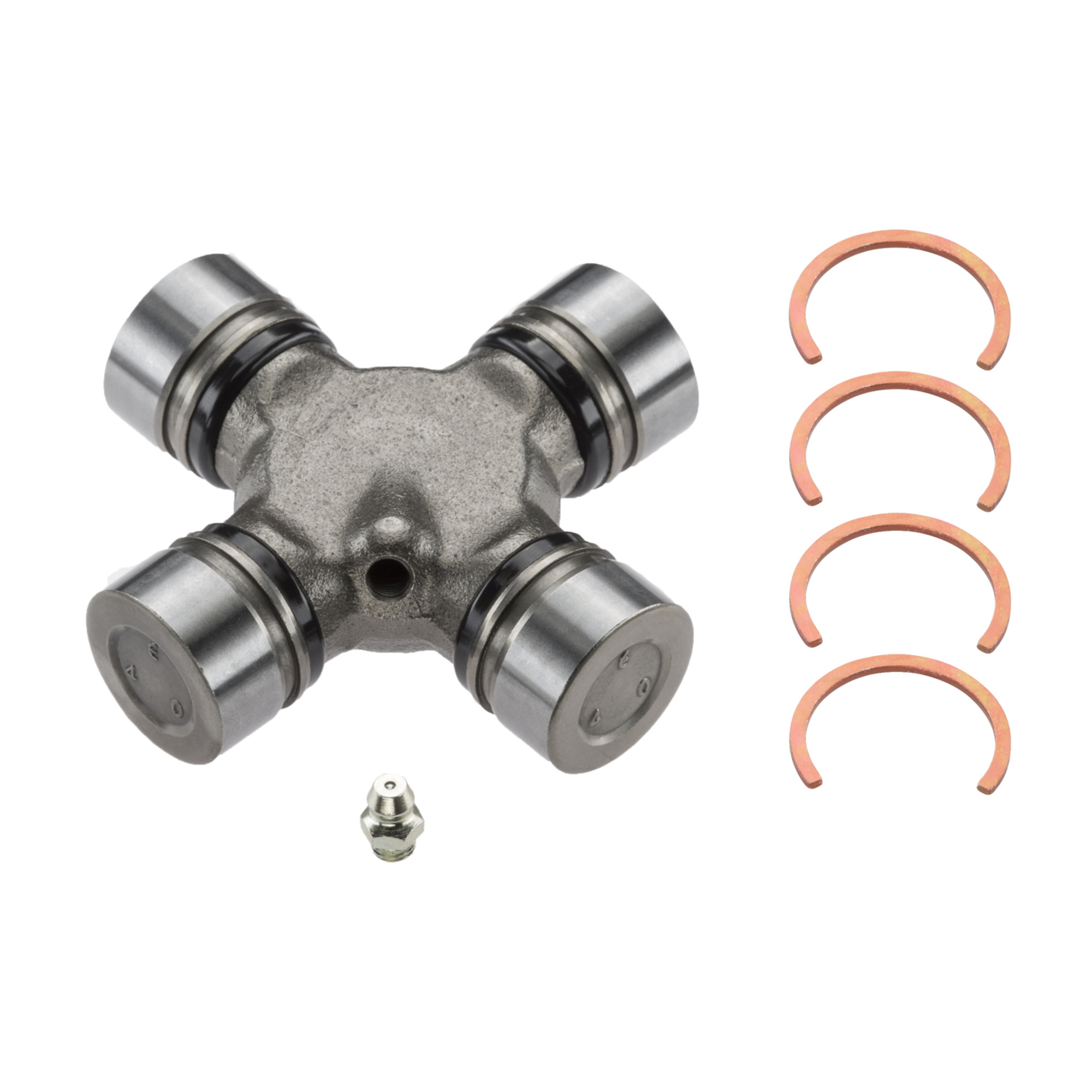

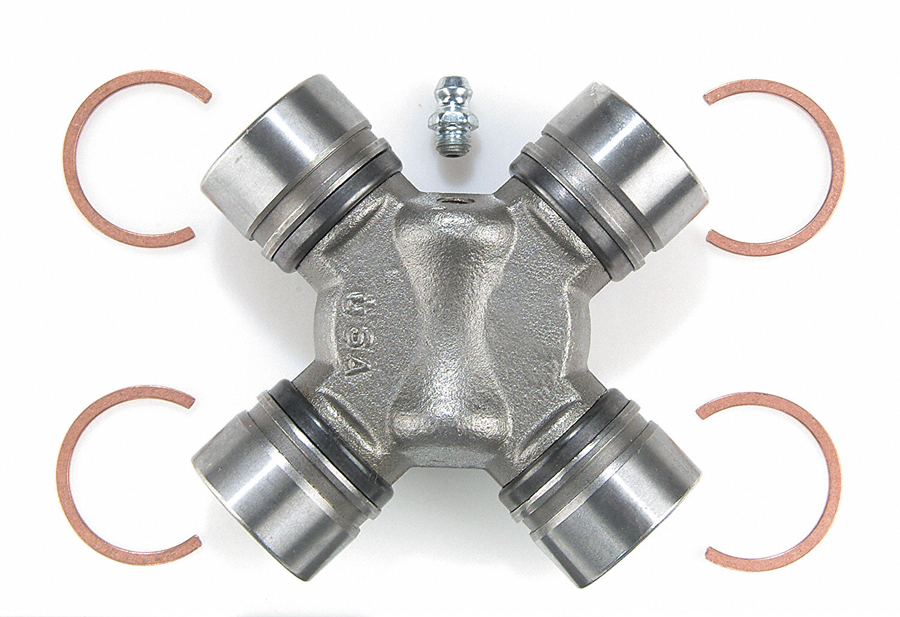

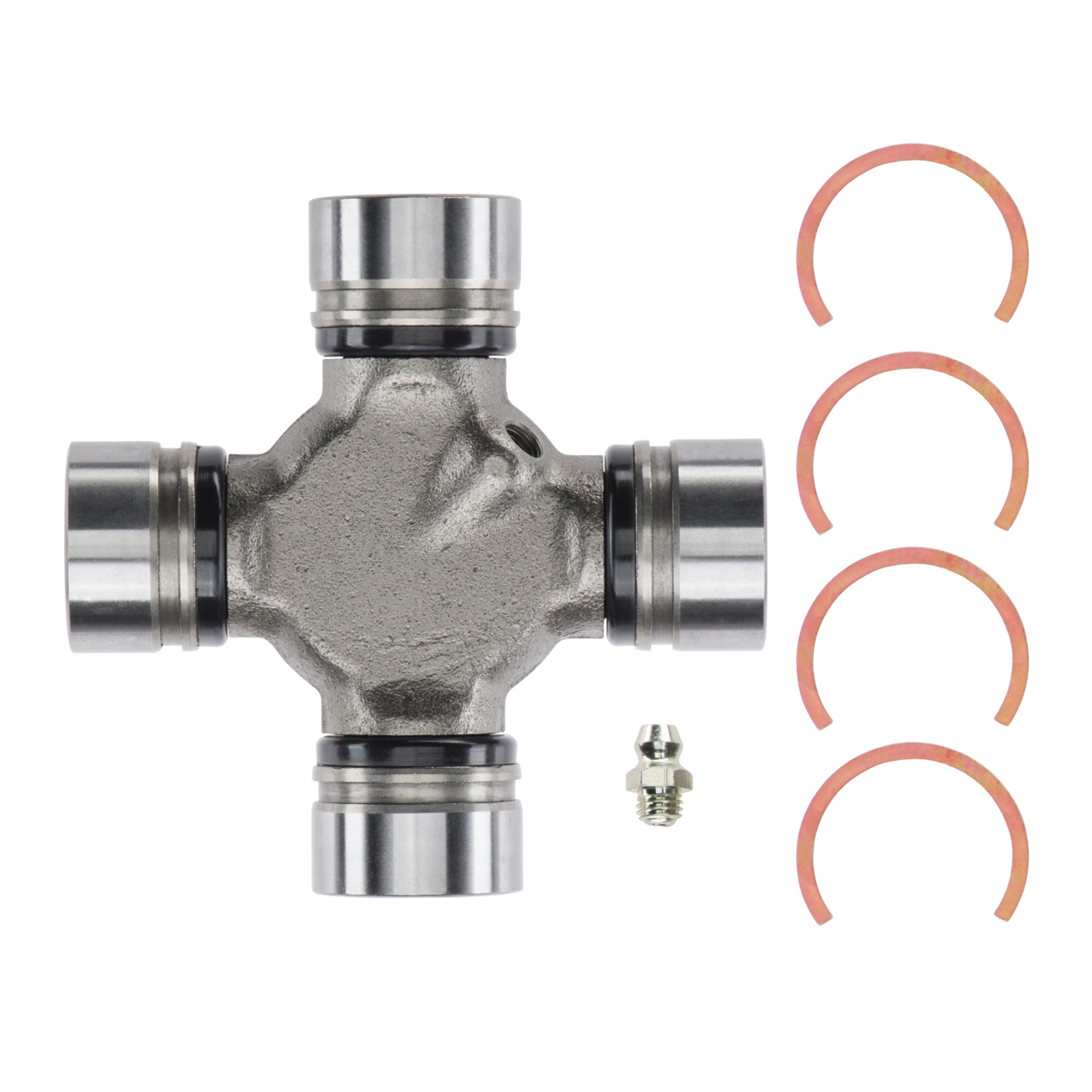

MOOG Driveline Products 534G Greaseable Premium Universal Joint
- Bearing Cap Axis 1 Diameter: 1.125 IN
- Bearing Cap Axis 1 Diameter: 28.5 MM
- Bearing Cap Axis 2 Diameter: 1.125 IN
- Bearing Cap Axis 2 Diameter: 28.6 MM
- Bearing Cap Type: 4 Grooved Round Bearings
- Greaseable: YES
- Length Axis 1: 2.433 IN
- Length Axis 1: 61.798 MM
- Length Axis 2: 2.433 IN
- Length Axis 2: 61.798 MM
- Length Measurement A: Outside of Groove to Outside of Groove
- Length Measurement B: Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
- Lube Fitting Location: Regular Lube Fitting in Cross
- OE Series: Mechanics 3, Saginaw 44 and American Axle 1344
- Part Description: Universal Joint
- U-Joint Identification: 4 Grooved Round Bearings
- 1014: ALLOY
- 10951029: General Motors
- 10952423: General Motors
- 114-3011: BorgWarner
- 114-3105: BorgWarner
- 114-3114: BorgWarner
- 114-3127: BorgWarner
- 114-3133: BorgWarner
- 114-3147: BorgWarner
- 114-4HD: BorgWarner
- 114-4HP: BorgWarner
- 12471502: General Motors
- 12479126: General Motors
- 20040: TRW Steering and Suspension
- 20207: TRW Steering and Suspension
- 210-3105: GMB
- 215-3105: GMB
- 2-3010: Chicago Rawhide
- 2-3010: Neapco OE Series
- 2-3010: SKF
- 2-3011: Chicago Rawhide
- 2-3011: Neapco OE Series
- 2-3011: SKF
- 23104840: General Motors
- 23104840: GM
- 26042371: General Motors
- 283105: Chicago Rawhide
- 283105: Neapco OE Series
- 283105: SKF
- 283105B: Chicago Rawhide
- 283105B: Neapco OE Series
- 283105B: SKF
- 3147: Perfect Circle
- 45U0108: ACDelco
- 5093377AB: Chrysler
- 5093377AC: Chrysler
- 5-3147X: Spicer
- 5737X: Spicer
- 5795X: Spicer
- 68004848: Chrysler
- 68004848AB: Chrysler
- A-534G-1014X: AUTOPAR
- AEC3105: Replaced
- APIUJ800: Replaced
- DT3147: Spicer
- G5-3105X: GMB
- GUD85: GMB
- SPL25-6X: Spicer
- U3147: Mcquay-Norris
