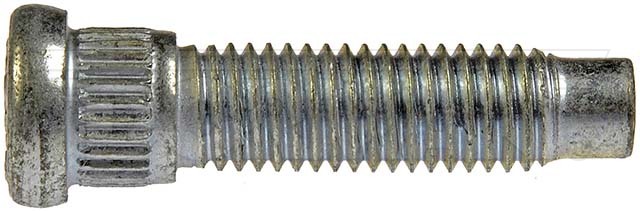

Wielbout M12-1.75
Dorman : 610-390
Artikelnr: DOR610390
Replacing Items: EISD1924
DOR610186 Replaces RAY0158B // 7009 20170303
- Bolt Grade: 10.9
- Color: Plateado
- Color: Silver
- Contenidos del paquete: 1 esparrago
- Diámetro del nudo (in): 14,76 mm MM
- Estilo: Esparrago dentado
- Head Diameter: 18,75 mm MM
- Head Diameter: 18.75 mm MM
- Knurl Diameter (In): 14.76 mm MM
- Longitud de la rosca (in): 31,62 mm MM
- Longitud del reborde (in): 10,04 mm MM
- Material: Acero
- Material: Steel
- Nariz de inicio rápido: Si
- Quick-Start Nose: Oui
- Quick-Start Nose: Yes
- SAE or Metric: Metric
- SAE or Metric: Metrico
- Shoulder Diameter: 14.23 MM
- Shoulder Length (In): 10.04 mm MM
- Style: Serrated Stud
- Thread Diameter: 12 MM
- Thread Direction: Clockwise (Right)
- Thread Direction: Rotar en el sentido de las agujas del reloj (derecha)
- Thread Length (In): 31.62 mm MM
- Thread Pitch: 1.75
- Thread Size: M12-1.75 MM
- Under Head Length: 50,80 mm MM
- Under Head Length: 50.80 mm MM
- 2028601: R&B Rebuilders
- 27896B: Raybestos Brakes
- 561-390: Papco
- 561-390: Wagner Brake
- 610-390: Dorman
- 61771: Barnes Systems
- 641-1601: Balkamp
- 97040: Dorman
- 97303: Power Train
- BD125854: Wagner Brake
- F65Z1107A: Ford
- F65Z1107AA: Ford
- F65Z1107CC: Ford
- F85Z1107JJ: Ford
- RAY27896B: Replaced
- RB27896B: Raybestos Brakes
- Rotation: Right
- Thread: M12-1.75
