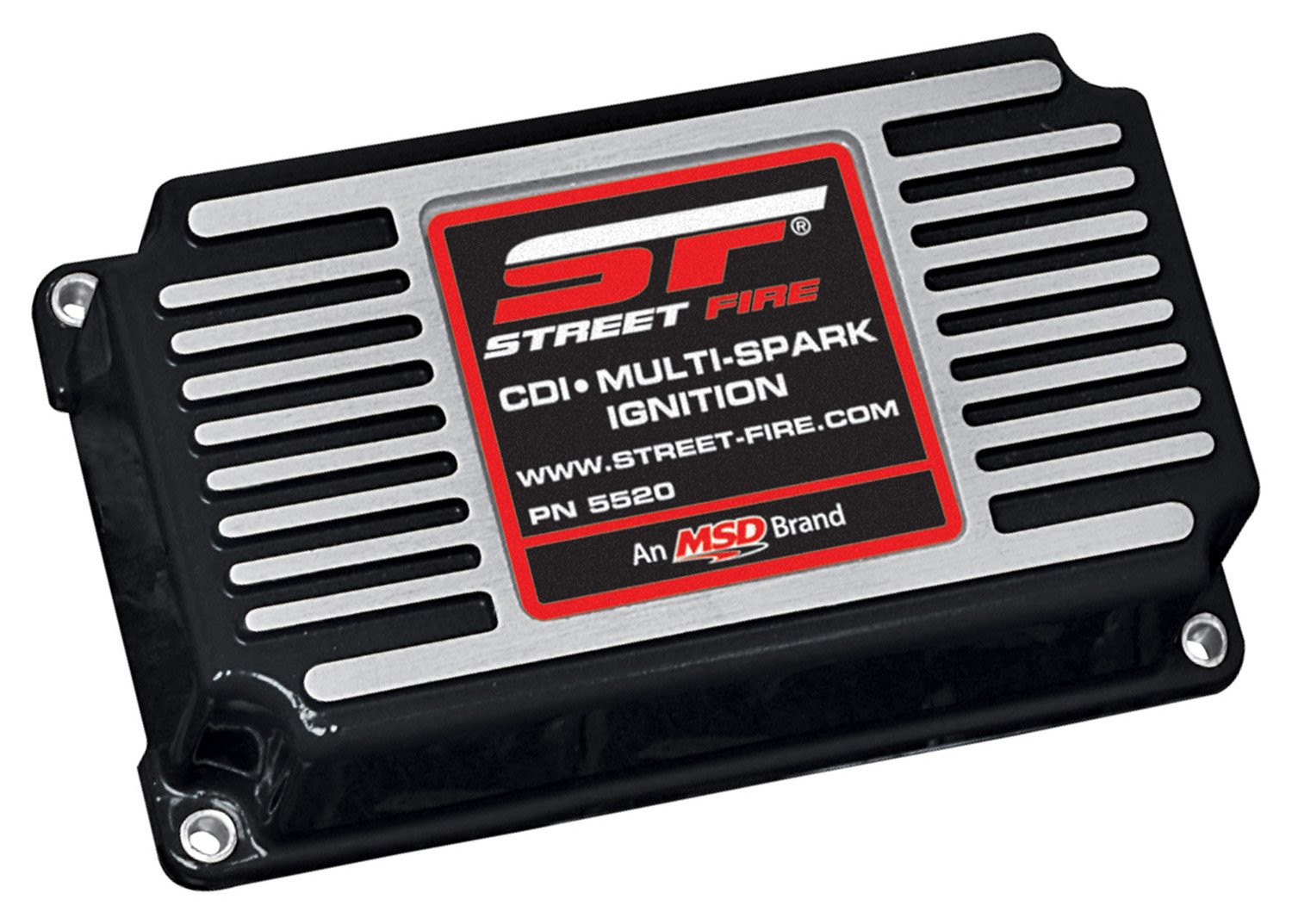

Ontstekingskast Digital
MSD Ignition : 5520
Artikelnr: MSD5520
* Capacitive Discharge Technology * Multiple Sparks Improve Starting And Idle * Full Power Output At High RPM * Connects to points/amplifiers/magnetic pickup distributors * Adjustable rev limiter for overrev protection
Street Fire Ignition Controller; w/Rev Control; 4/6/8 Cylinder; 0.7 Amp per 1000 RPM; 435 Primary Volts; 15000 RPM w/14.4 Volts; 43000 Secondary Volts; 95mJ Per Spark;
- Current Draw: .7 Amp per 1000 RPM
- Primary Voltage: 435
- RPM: 15000
- Secondary Voltage: 43000
- Spark duration: 20 Degree Crankshaft Rotation
- Spark Energy: 95 mJ per spark
- Voltage: 10-18 V; Negative Ground
